23cm NBFM Repeater

WEGENS EEN DEFECT AAN DE BOOSTER IS DE 23 CM REPEATER TIJDELIJK BUITEN GEBRUIK!
Frequency: TX 1298,475MHz - RX 1270,475MHz (-28 MHz)
CTCSS: 131,8 Hz (once the repeater is open CTCSS is no longer required)
TX Power: 10 Watt
Transmitter and receiver: Modified Nord-Link interlink packet tranceivers
LO: Modified SI5351 board (25MHz X-tal is replaced by a TCXO for improved stability)
PA: Mitsubishi M57762 module
CTCSS decoder: XR2211
Logic: Arduino Nano board
Software: own development

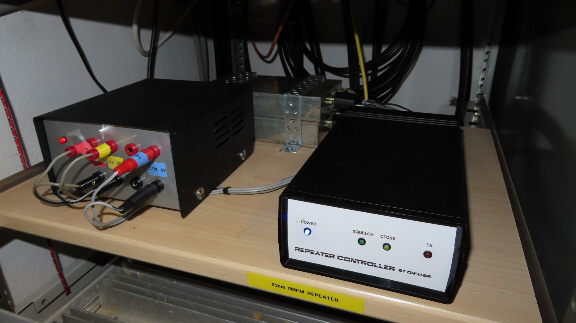

Power supply - logic - RX - TX

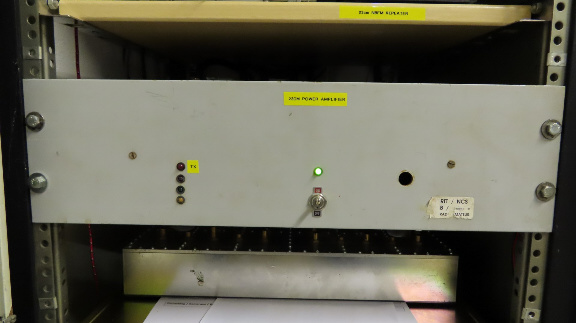

Booster

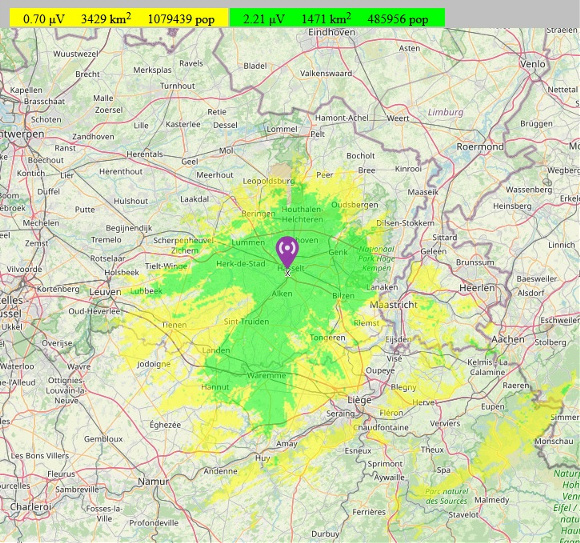

Dekkingsgraad (Radio Moblile - https://www.ve2dbe.com/)
